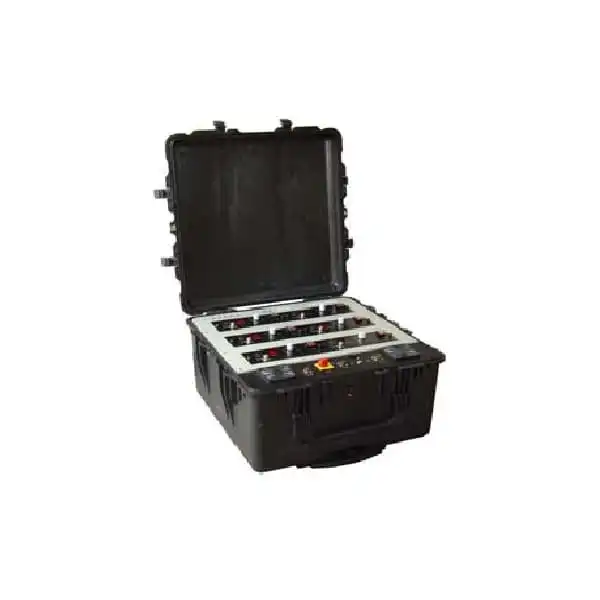

VS-800W · High-power bomb jammer
800 W High-Power Bomb Jammer for Radio and Cellular Signals
Eight independently controlled channels deliver 800 W of total RF output for radio, cellular, and 2.4 GHz wireless applications. Mains-powered operation with an optional external battery.
- Independent on/off and adjustable power for each channel.
- 800 W total RF output across eight 100 W channels.
- Mains-powered design for continuous operation.
- Optional external LiFePO4 battery for operation away from mains power.
Product code: VS-800W
Contact Us for Pricing
Tell us where you plan to use the unit and which frequency bands you need.
Free consultation, training and support.
Speak to our team: +39 080 302 6530
For authorized government, military, and law enforcement customers.
Check the regulations applicable in your territory before requesting information.
Product overview
Eight Bands. 800 W Total Output.
100 W per Channel
Eight 100 W channels provide independent on/off and power controls. Listed bands include cellular, VHF, UHF, and 2.4 GHz wireless frequencies.
Specified for Long-Range Use
The listed range is 500–1,000 meters at a signal level of −75 dBm. Actual coverage depends on local conditions.
Mains or Optional Battery
Designed for continuous operation on mains power. An optional external battery supports up to 2 hours under ideal conditions; actual runtime varies with use.
Product details
Full description
Radio and Cellular Interference in One System
The VS-800W is a high-power RF interference system intended for authorized protective operations involving radio-controlled explosive threats. Eight channels deliver 100 W each, for 800 W of total output.
The listed configuration includes GSM, UMTS, LTE, Wi-Fi, Bluetooth, VHF, and UHF bands. The VHF channel covers 130–180 MHz at 100 W. The system does not detect explosives or guarantee prevention of detonation; effectiveness depends on the configured bands and operating conditions.
Independent Controls and External Power
Each channel can be switched on or off independently, with adjustable output power. The unit is supplied ready to use and designed for 24-hour operation on mains power. Its specified range is 500–1,000 meters at −75 dBm; actual coverage varies with local conditions.
The optional B-50AH external LiFePO4 battery is rated at 27 V / 50 Ah. Listed runtime is 1–2 hours: up to 2 hours under ideal conditions, with actual runtime varying by use. The unit weighs 45 kg, excluding antennas and accessories.
Technical specifications
| Total RF output | 800 W |
|---|---|
| Output per channel | 100 W × 8 channels |
| Specified range | 500–1,000 meters at −75 dBm; actual coverage varies |
| Channel controls | Independent on/off and adjustable power |
| Power supply | AC 220 V to DC 27 V, or 24 V / 45 A, as listed |
| Mains operation | Designed for continuous 24-hour use |
| Optional external battery | B-50AH, 27 V / 50 Ah LiFePO4 |
| Battery runtime | Listed as 1–2 hours; up to 2 hours under ideal conditions. Actual runtime varies with use. |
| Dimensions | 626 × 492 × 350 mm |
| Weight | 45 kg, excluding antennas and accessories |
| Operating temperature | −20°C to +60°C |
| Channel | Frequency (MHz) | Output | Signal |
|---|---|---|---|
| 1 | 920–965 | 100 W | GSM 900 |
| 2 | 1800–1880 | 100 W | DCS / GSM 1800 |
| 3 | 2100–2170 | 100 W | 3G UMTS |
| 4 | 2620–2690 | 100 W | 4G LTE / WiMAX |
| 5 | 2400–2500 | 100 W | Wi-Fi / Bluetooth |
| 6 | 790–830 | 100 W | Low-band 4G LTE |
| 7 | 130–180 | 100 W | VHF |
| 8 | 400–480 | 100 W | UHF |
Coverage depends on the configured bands. The external battery is optional.
Usage and restrictions
For Authorized Agencies
For use by government agencies, armed forces, and law enforcement in the course of their official duties. Sales and use are subject to applicable restrictions.
Expert Support, Included
Before You Buy
Talk with our team about your requirements and available configurations.
After Your Purchase
Get help learning the equipment and answers to your product questions.
Technical support
Work directly with the Endoacustica team for technical assistance.
