SAB-R1 Mini Voice Recorder with Separate Microphone — SAB-R1 · Dimensions: 40 × 17 × 8 mm

SAB-R1 · Separate microphone · 8 GB memory

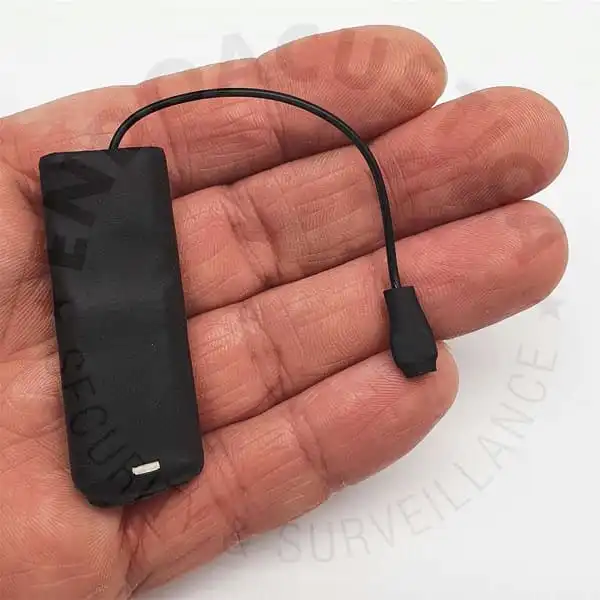

SAB-R1 Mini Voice Recorder with Separate Microphone

The SAB-R1 combines a slim recording unit with a separate Knowles microphone, so the microphone can sit where it picks up sound best. At just 40 × 17 × 8 mm, the recorder holds 8 GB of WAV audio and runs for up to 55 hours under ideal conditions. A single ON/OFF control starts and stops recording.

Knowles microphone with a high-pass filter.
Custom microphone cable lengths available on request.
8 GB internal memory stores up to 100 hours of audio.
WAV recording at 192 kbps.
Built-in rechargeable 3.7 V lithium-ion battery.
USB file transfer with no dedicated software required.

Product code: SAB-R1

Free technical consultation, training and support.
+39 080 302 6530

Compact recorder. Flexible microphone placement.

Separate wired microphone

Position the microphone independently of the recording unit. Custom cable lengths are available to suit the installation.

One-control operation

Start and stop recording with the ON/OFF control. There are no menus to navigate or software settings to configure before recording.

Direct access to recordings

Connect the recorder to a computer using its USB adapter, then copy the WAV files for playback or storage. No dedicated file-management software is required.

Full Description

A small recorder with a separate Knowles microphone

Built in Endoacustica’s laboratory, the SAB-R1 records speech and room audio to 8 GB of internal memory. Its slim body measures 40 × 17 × 8 mm—approximately 1.57 × 0.67 × 0.31 inches.

The microphone connects by cable rather than sitting inside the recording unit. This gives you more freedom to place it near the sound source while keeping the recorder elsewhere. Cable length can be customized on request.

The Knowles microphone includes a high-pass filter to reduce low-frequency noise.

WAV recording with a single ON/OFF control

Switch the recorder on to begin recording and off to stop. Audio is saved as WAV files at a bitrate of 192 kbps.

Up to 55 hours of battery life

The built-in rechargeable 3.7 V lithium-ion battery supports up to 55 hours of recording under ideal conditions. Actual runtime varies with use.

The 8 GB memory stores up to 100 hours of audio. Storage capacity and battery life are separate specifications: 100 hours refers to the amount of audio the memory can hold, not recording time on a single charge.

Copy recordings to your computer

Use the USB adapter to connect the SAB-R1 to a computer and copy your recordings. The files can then be played in a standard audio player without dedicated recorder software.

The SAB-R1 also supports MP3 playback. Recordings made with the device are saved in WAV format.

The internal memory can also hold documents and other files. Any space used for those files reduces the capacity available for audio recordings.

Technical Specifications

Recording and Memory
Product code	SAB-R1
Internal memory	8 GB
Audio storage capacity	Up to 100 hours; separate from battery runtime
Recording format	WAV
Additional playback format	MP3
Recording bitrate	192 kbps
Microphone	Separate wired Knowles microphone with high-pass filter
Microphone cable	Custom lengths available on request
Control	ON/OFF

Power and Connections
Recording runtime	Up to 55 hours under ideal conditions. Actual runtime varies with use.
Battery	Built-in rechargeable 3.7 V lithium-ion
Dimensions	40 × 17 × 8 mm (approx. 1.57 × 0.67 × 0.31 in)
Computer connection	USB adapter
Dedicated software	Not required to access recorded files
Other file storage	Supported on the internal 8 GB memory

Applications

Meetings and interviews

Record discussions for later review. The separate microphone can sit near the participants without placing the recorder on the same surface.

Caregiving documentation

Record interactions during elder care or childcare for later review. Audio stays in local memory and is transferred to a computer after recording.

Extended room recording

Long battery life supports extended recording sessions with fewer charging breaks. A custom-length microphone cable allows the installation to fit the available space.
